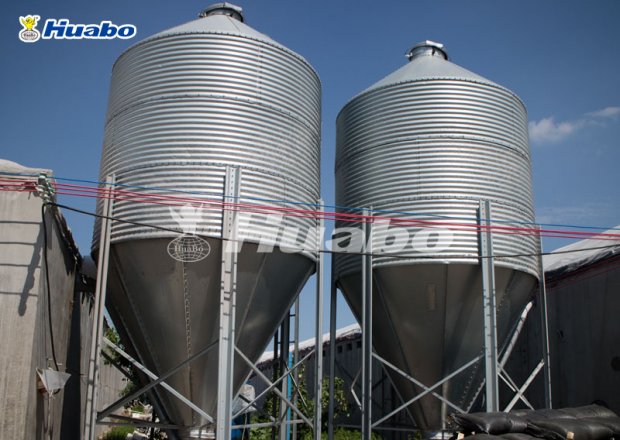

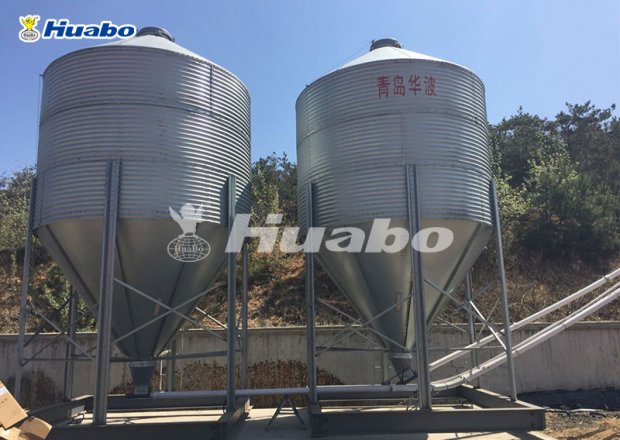

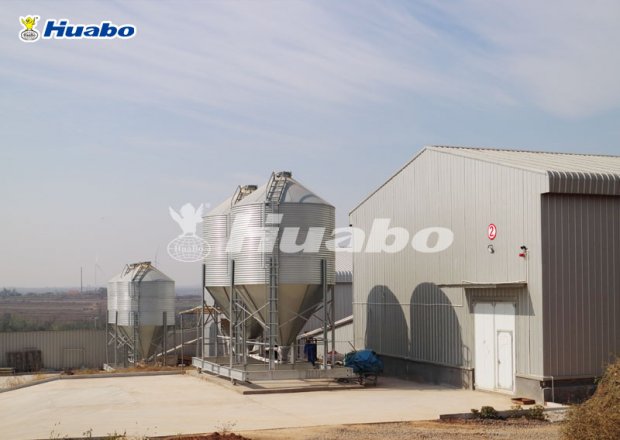

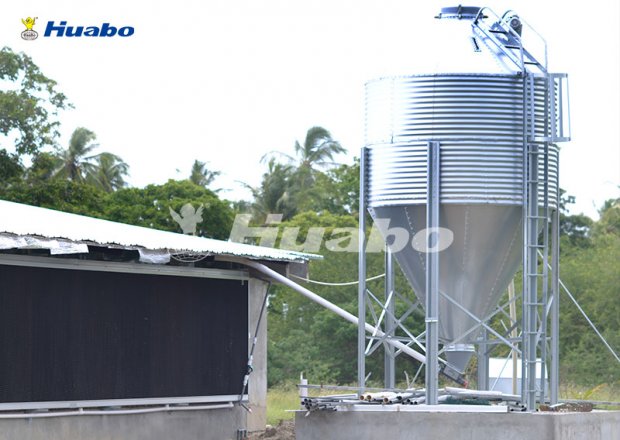

Feed silo

Feeding System

Different size and parameter silo could be fitness for different poultry farm.

Inquire Now

Feature and Parameter：

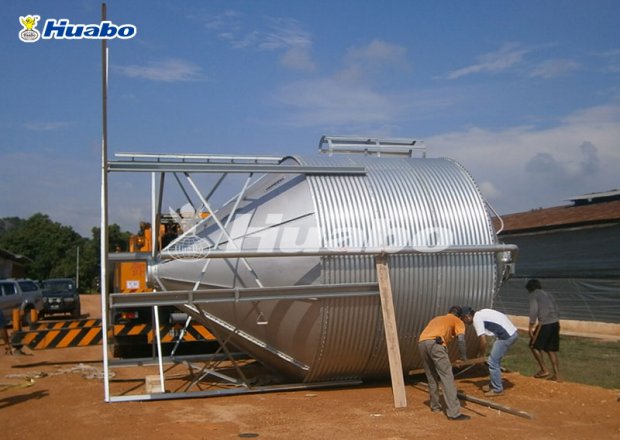

●275g/㎡ two-sided galvanized sheet with the features of high intensity, anti-corrosion, long service life and easy to install.

●4 different specifications and 12 model numbers can meet the different feed storage requirements.

●Special top cover opener design, easy to operate in windy weather.

●Special designed brim on the joint of hopper body and hopper panel and seal strip between panel sheets can prevent rainwater entering the silo to cause moldy.

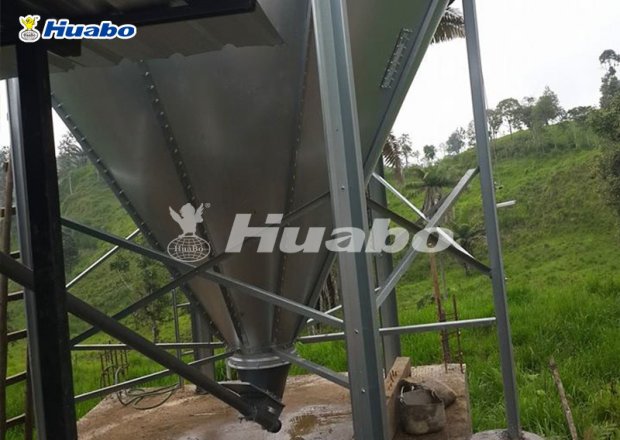

●Special designed hopper panel can avoid feed piling up.

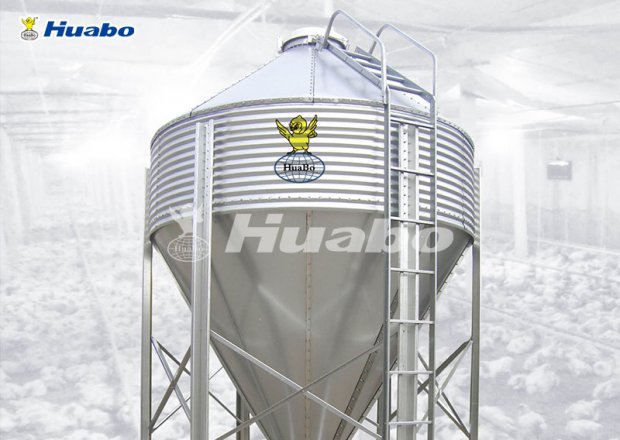

●Equipped ladder and window are convenient for maintaining the equipment and checking feed condition.

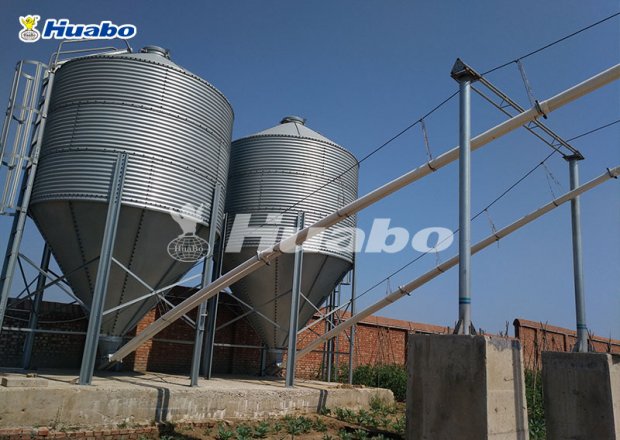

●Different boot and outlet can fulfill complex feed conveying requirements.

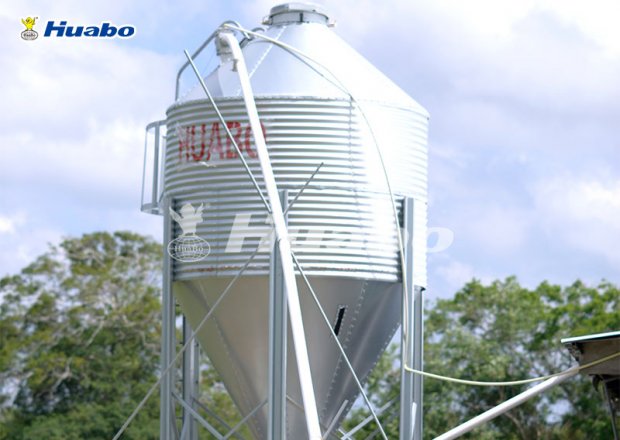

●Customized pneumatic feeding system.


Diameter 1.815m silo w/60°Hopper

Model

Capacity(T)

Cubic measure（m³）

Height（m）

18-0060-1

2.5

4.2

3.6

18-0060-2

4.0

6.5

4.5

18-0060-3

5.0

8.8

5.4

Diameter 2.723m silo w/60°Hopper

Model

Capacity(T)

Cubic measure（m³）

Height（m）

27-0060-1

7.0

11.8

4.8

27-0060-2

10.0

17.0

5.7

27-0060-3

13.0

22.2

6.6

Diameter 3.050m silo w/60°Hopper

Model

Capacity(T)

Cubic measure（m³）

Height（m）

30-0060-1

9.0

16.0

5.0

30-0060-2

13.0

22.5

5.9

30-0060-3

17.0

29.0

6.8

Diameter 3.630m silo w/60°Hopper

Model

Capacity(T)

Cubic measure（m³）

Height（m）

36-0060-1

13.0

21.7

5.0

36-0060-2

19.0

30.9

5.9

36-0060-3

25.0

40.1

6.8
